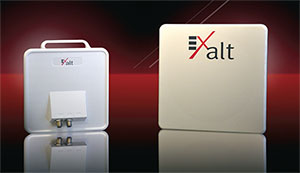

Exalt ExtendAir Emimo Dubai

ExtendAir-emimo-DubaiExalt ExtendAir emimo Dubai – High Performance Point-to-Point Wireless Bridge for Mission Critical Applications With the ability to support quad-band operation and utilizing 2×2 MIMO and OFDM technologies, ExtendAir eMIMO (enhanced Multiple Input, Multiple Output) brings a new level of performance and reliability level to value priced wireless backhaul products that exceeds other carrier class license-exempt radio systems. All-outdoor ExtendAir eMIMO wireless bridges provide high throughput at extended ranges while OFDM allows for operation in Line of Sight (LOS), near Line of Sight (nLOS) and Non-Line of Sight (NLOS) modes. Standard 128-AES Encryption yields exceptional link security for data transmission. ExtendAir eMIMO utilizes Dynamic Frequency Selection (DFS) to automatically choose frequencies with minimal interference while providing radar detection and avoidance per FCC and European regulations. ExtendAir eMIMO delivers the lowest cost per Mbps, with the durability and ease of use that users have come to expect from Exalt.

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width=”1/1″][vc_empty_space height=”32px”][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_column_text]

ExtendAir® eMIMO™ Benefits:

LOS, nLOS and NLOS operation. ExtendAir eMIMO utilizes Orthogonal requency
Division Multiplexing (OFDM) technologies along with 2×2 Multiple In Multiple Out (MIMO) for virtually any operating environment.

Quad-band frequency support. Exalt ExtendAir eMIMO Dubai operates in the 4.9 GHz, 5.3 GHz, 5.4 GHz and 5.8 GHz frequency bands. Webbased GUI software interface makes it easy to select the desired band.

Exceptional link resilience. ExtendAir eMIMO Dubai can automatically perform fast rate adaption by adjusting the modulation level and coding strength as well as seamlessly switch between MIMO and STBC diversity modes.

Automatic resource optimization. Predicting bandwidth allocation needs for each direction of a network as conditions change is often only a guess. With ExtendAir eMIMO, the system automatically adjusts the up/down ratio in real time to dynamically optimize the available bandwidth resources.

Longer range with smaller antennas. With Space Time Block Coding (STBC), Exalt provides the highest system gain advantage with higher transmit power while sustaining higher throughput levels compared to competitors who must lower modulation levels to maintain the link.

[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_column_text]

Highest co-location density. ExaltSync™ synchronization allows multiple units to be co-located without the risk of interference. ExaltSync ensures that all transmitters
operate simultaneously, to eliminate interference between co-located devices.

Pay as you grow capacity expansion. Exalt’s ExtendAir eMIMO systems can be remotely upgraded to allow for capacity enhancements and optional features using software license keys. Buy the capacity and features you need, with a simple, cost effective upgrade path for the future without having to change out radio hardware.

Low power consumption using standard. Power-Over-Ethernet (PoE) devices. ExtendAir eMIMO’s low power consumption enables operation from standard 802.3af compliant POE devices or switches.

Ruggedized construction. Unlike other low-cost license-free solutions that utilize
plastic components for the outdoor enclosure, ExtendAir eMIMO is built using IP67 rated aluminum construction for durable, long-term, worry-free operation.

Ease of Installation. ExtendAir eMIMO has a built-in tone generator that increases
pitch as the antenna is adjusted for perfect alignment. And when you need a little help, it’s comforting to know the user manual is accessed by simply browsing into the radio.

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width=”1/1″][vc_empty_space height=”32px”][/vc_column][/vc_row][vc_row][vc_column width=”1/1″][vc_column_text]

ExtendAir r5050

Ethernet Capacity (Layer 1/Layer 2) 270 / 216 Mbps

Frequency (GHz)1 Quad Band: 4.940−4.990 GHz, 5.250−5.350 GHz, 5.470−5.725 GHz, 5.725−5.875 GHz

RF Interface Integral 23 dBi antenna

Outdoor Unit (ODU) Models r5050 (Integral 23 dBi antenna)
1×10/100/1000BaseT PoE + 2×10/100BaseT
rc5050 (Connectorized)
1×10/100/1000BaseT PoE + 2×10/100BaseT

Frequency Bands (GHz)1 4.940–4.990 GHz, 5.250–5.350 GHz, 5.470–5.725 GHz, 5.725–5.875 GHz

Tuning Resolution 5 MHz

Max Output Power (with STBC, dBm)2 4.940–4.990 GHz 5.250–5.350 GHz 5.470–5.725 GHz 5.725–5.875 GHz

40 MHz / 20 MHz / 10 MHz / 5 MHz N/A / 21.5 / 21.5 / 21.5 23.5 / 21.5 / 21.5 / 21.5 23.5 / 21.5 / 21.5 / 21.5 28 / 28 / 28 / 28

Min Output Power (Power Control Step Size) 0 dBm (1.0 dB)

Throughput (at max coding rate, Mbps Max system Layer 1 / Max Ethernet Layer 2)3



ExtendAir rc5050

Ethernet Capacity (Layer 1/Layer 2) 270 / 216 Mbps

Frequency (GHz)1 Quad Band: 4.940−4.990 GHz, 5.250−5.350 GHz, 5.470−5.725 GHz, 5.725−5.875 GHz

RF Interface Integral 23 dBi antenna

Outdoor Unit (ODU) Models r5050 (Integral 23 dBi antenna)
1×10/100/1000BaseT PoE + 2×10/100BaseT
rc5050 (Connectorized)
1×10/100/1000BaseT PoE + 2×10/100BaseT

Frequency Bands (GHz)1 4.940–4.990 GHz, 5.250–5.350 GHz, 5.470–5.725 GHz, 5.725–5.875 GHz

Tuning Resolution 5 MHz

Max Output Power (with STBC, dBm)2 4.940–4.990 GHz 5.250–5.350 GHz 5.470–5.725 GHz 5.725–5.875 GHz

40 MHz / 20 MHz / 10 MHz / 5 MHz N/A / 21.5 / 21.5 / 21.5 23.5 / 21.5 / 21.5 / 21.5 23.5 / 21.5 / 21.5 / 21.5 28 / 28 / 28 / 28

Min Output Power (Power Control Step Size) 0 dBm (1.0 dB)

Throughput (at max coding rate, Mbps Max system Layer 1 / Max Ethernet Layer 2)3



[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_column_text]At-a-Glance:
• 2×2 MIMO with OFDM
• LOS, nLOS, NLOS operation
• Quad-band support
• High Throughput
• High Transmit Power
with STBC
• Pay-as-you-grow upgrades
• Automatic Adaptive Modulation
• Local Synchronization
• Automatic throughput and
symmetry control
• Dynamic Frequency Selection
• AES Encryption standard
• Standard 802.3af PoE
• Carrier-grade IP67 c[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_column_text]Applications:
• Small Cell Backhaul
• WISP/Service Providers
• Government (Public Safety)
• Campus (Education,
Healthcare, B2B)
• Utilities (Oil & Gas, Energy,
Transportation)
• Enterprise (Private Networks)[/vc_column_text][/vc_column][/vc_row]
