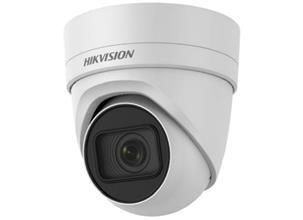

DS-2CD2H85FWD-IZS8 MP WDR Vari-focal Network Turret Camera

• 1/2.5″ Progressive Scan CMOS

• 3840 × 2160 resolution

• 2.8 to 12 mm focal length

• H.265, H.265+, H.264+, H.264

•120dB Wide Dynamic Range

• BLC/3D DNR/ROI

• IP67, IK10

• 4 behavior analyses and face detection

DS-2CD2H85FWD-IZS

Camera
Image Sensor:	\|	1/2.5″ Progressive Scan CMOS
Signal System:	\|	PAL/NTSC
Min. Illumination:	\|	Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR Color: 0.014 Lux @ (F1.4, AGC ON), 0 Lux with IR
Shutter time:	\|	1/3 s to 1/100,000 s
Slow shutter:	\|	Support
Lens:	\|	2.8 to 12 mm
Lens Mount:	\|	φ14
Adjustment Range:	\|	Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 360°
Day& Night:	\|	IR cut filter with auto switch
Wide Dynamic Range:	\|	120 dB
Digital noise reduction:	\|	3D DNR
Focus:	\|	Motorized VF lens(-Z model)
Compression Standard
Video Compression:	\|	H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate:	\|	32Kbps~16Mbps
Audio Compression:	\|	G.711/G.722.1/G.726/MP2L2
Audio bit rate:	\|	32 to 128kbps
Triple Streams:	\|	Yes
Max. Image Resolution:	\|	3840 × 2160
Frame Rate:	\|	50Hz: 20 fps (3840 × 2160), 25 fps (2944 × 1656, 2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20 fps (3840 × 2160), 30 fps (2944 × 1656, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream:	\|	50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream:	\|	50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240)
Image Enhancement:	\|	BLC/3D DNR
Image Settings:	\|	Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
ROI:	\|	Support 1 fixed region for main stream and sub stream separately
Day/Night Switch:	\|	Auto/Schedule/Triggered by Alarm In
Network
Network Storage:	\|	microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger:	\|	Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login
Protocols:	\|	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function:	\|	One-key recovery, Anti-Flicker, three streams, heartbeat, mirror, password protection, video mask, Watermark, IP address filtering
System Compatibility:	\|	ONVIF (Profile S, Profile G),ISAPI
Interface
Communication Interface:	\|	1 RJ45 10M / 100M Ethernet interface
Alarm:	\|	1 input, 1 output (max. 12 VDC, 30 mA)
Alarm Input:	\|	1
Alarm Output:	\|	1
Video Output:	\|	1Vp-p Composite Output (75 Ω, BNC)
On-board storage:	\|	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button:	\|	Yes
Audio
Environment Noise Filtering:	\|	Support
Smart Feature-set
Behavior Analysis:	\|	Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection:	\|	Cross a pre-defined virtual line
Intrusion Detection:	\|	Enter and loiter in a pre-defined virtual region
Unattended Baggage:	\|	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal:	\|	Objects removed from the pre-defined region, such as the exhibits on display.
Recognition:	\|	Face Detection
General
Operating Conditions:	\|	-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing)
Power Supply:	\|	12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption:	\|	12 VDC, 0.92A, max. 11W PoE (802.3af, 37V to 57V), 0.22A to 0.35A, max. 12.5W
Impact Protection:	\|	IK10
Weather Proof:	\|	IP67
IR Range:	\|	Up to 30m
Dimensions:	\|	Φ 135.8 mm × 145.5 mm (Φ 5.35″ × 5.73″)
Weight:	\|	With Package: Approx. 1220 g (2.69 lb.) Camera: Approx. 1060 g (2.34 lb.)
